High Productivity: This Twin Screw WPC Foam Board Making Machine offers exceptional output, capable of producing 400-500 kg/h, making it an ideal choice for large-scale production needs.
Multi-Plastic Compatibility: The machine is designed to process a variety of plastics, including PE, PP, PVC, WPC, and HDPE, allowing for flexibility in production and meeting diverse customer requirements.
Energy Efficiency: With a power consumption of 75kw or 90kw, this machine is designed to minimize energy costs and maximize productivity, making it an eco-friendly choice for industries.
Certified Quality: This product has obtained CE and ISO certifications, ensuring compliance with international standards and providing customers with peace of mind regarding the machine's reliability and performance.
Comprehensive After-Sales Support: The manufacturer offers online support, video technical support, and a 1-year warranty on the machine and its core components, providing customers with ongoing assistance and protection.
Inquire now
Add to cart
PVC WPC foam bord making machine is mainly used to produce PVC WPC foam boards. The machine can adopt different twin screw extruders according to different dimensions and moulds, and also equip with vacuum forming table, haul-off machine, cutter, stacker or other auxiliary machines, like mixer, crusher and miller for recycling wastes.

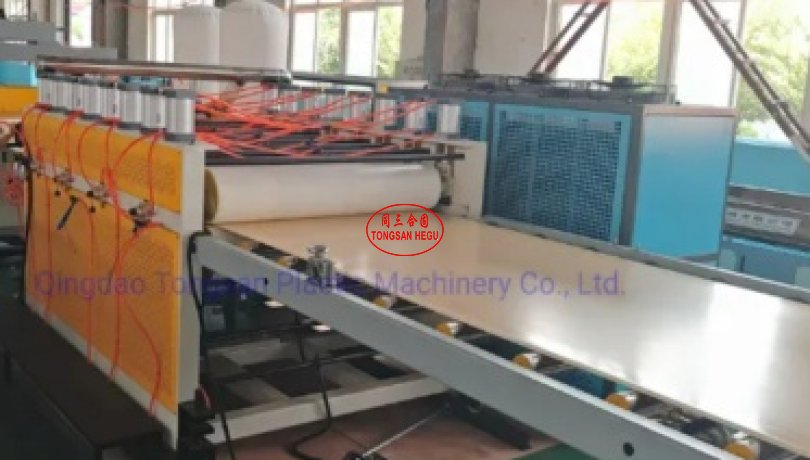

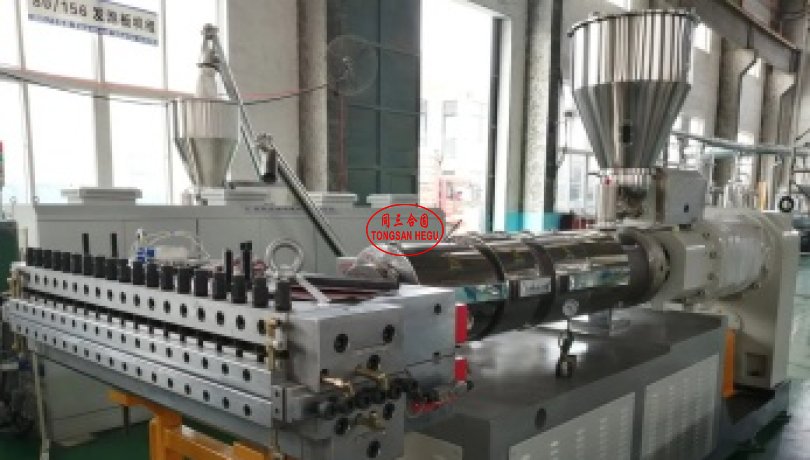

PVC WPC board machine can continuously produce PVC WPC foam board.This production line is composed of extruder, mould, calibrating platform, cooling frame, haul off machine, cutting machine and stacker.
The customer can also produce A+B+A three layers co-extrusion foam board by adding extruder and distributor .The machine should equip with water chiller, can increase production efficiency.
| Model | Extruder Model | Product Width (mm) | Product Thickness (mm) | Motor Power (kw) | Capacity (kg/h) |
| Semi-skinning Foam | 80/156 | 1220 | 5-20 | 75 | 400 |
| 92/188 | 1560 | 8-18 | 132 | 550 | |
| 92/188 | 2050 | 8-15 | 132 | 550 | |
| Co-extrusion | 80/156+65/132 | 1220 | 5-20 | 75+37 | 500 |
PVC WPC Foam Board Making Machine Production Line Precess:
Mixer (mixing the main materials and additives) → Twin Conical Screws Extruder → Mould → Calibration Table → Cooling Bracket → Hual-off Machine → Edge Cutting → Cutter → Stacker.
WPC PVC Foam Board Advantage & Application:
WPC PVC foam board and panels offer excellent impact resistance, very low water absorption and high corrosion resistance.
It is suitable for making partition wall
1. Feather light, non-absorb water, fire retardant and self-extinguishing
2. Foam Board is sound insulation, heat insulation, noise absorption, heat preservation and corrosion prevention.
3. Weather proof, vandal proof, and can be shaped, moulded, painted and screen printed.
4. Non-warping and stain proof.
5. Non-corrosive, non-toxic and chemical resistant.
6. Tough, rigid with a high impact stregth.
7. PVC Crust Foam Board is easy to clean and maintain.
