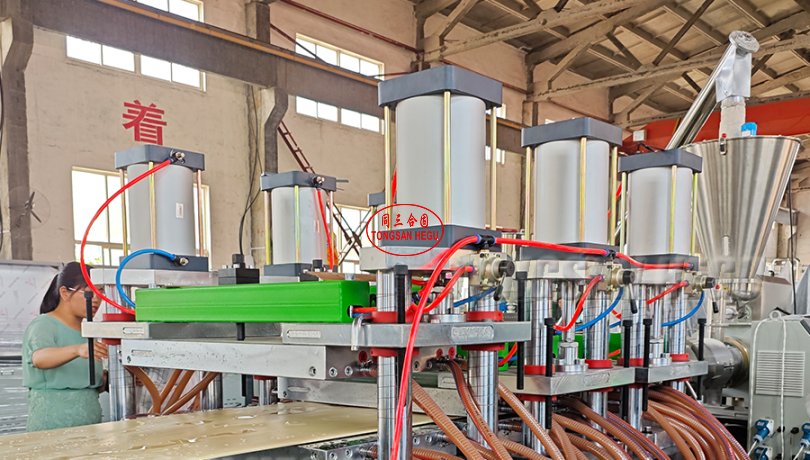

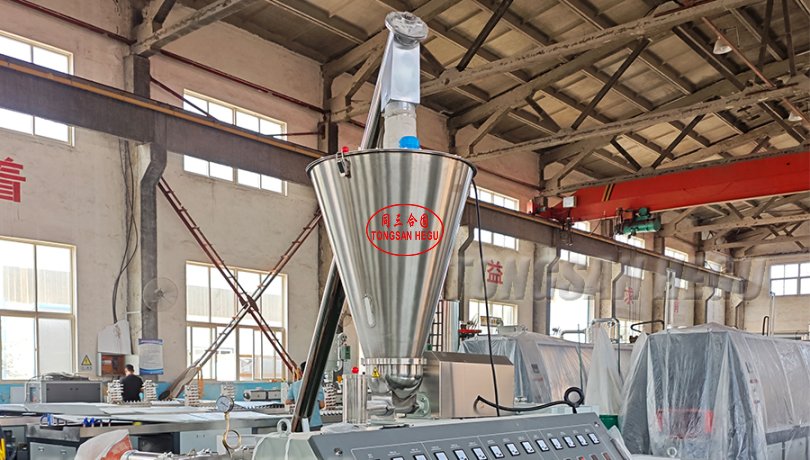

PVC WPC skinning foaming board extrusion line includes the special Twin-screw extruder, mould and other auxiliary machines. We use twin-screw extruder with compact structure, superior performance. Besides the screw and barrel and die are designed by our company and made in world famous manufacturers. And use the high-performance alloy steel for professional processing. So the machine has the advantages of uniform plasticizing, stable extrusion, high output, and long life. We can supply you the best material formulation and all of technology. We have several thousand kinds of formula through 15 years’researches.
Inquire now
Add to cart
Main Compision of PVC skinning foaming board extrusion line
SJZ80/156 / SJZ92/188 Conical Doubel- crew Extruder
Mould
Calibration Forming Table
Cooling Bracket
Haul-off
Transverse Cutting Bracket
Trim Cutting
Stacker
Auxiliary Machine for your choose
SHRL500/100 Mixer
SWP-400/500 Crusher
SMP-500 Miller
Water Chiller
Famous Electric Brand or Customized
SIEMENS MOTOR
ABB/DELTA INVERTER
OMORN TEMPERATURE METER
SCHNEIDER RELAY /CONTACTOR
Technical Information

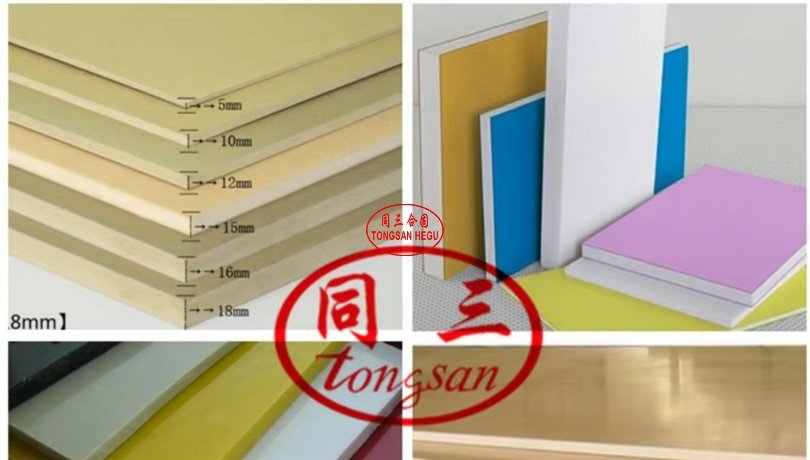

Extruder | Width of WPC Board | Length | Thickness of WPC Board | Line Speed | Output capacity |
SJSZ-80/156 | 1220mm | 2440mm | 5-25mm | 0.8-1.5m/min | 350Kg/-400kg/h |
SJSZ-80/172 | 1220mm | 2440mm | 5-25mm | 0.8-2m/min | 500-600kg/h |
SJSZ-92/188 | 1220/1830mm | 2440mm | 5-25mm , 25-40mm | 0.5-2m/min | 750kg/h-800Kg/h |
