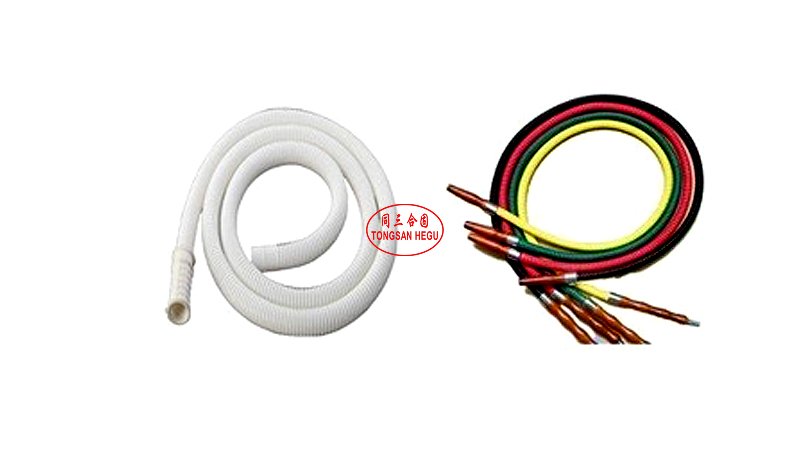

The single wall corrugated pipe with joint extrusion line is self-developed on the basis of original single wall corrugated pipe machine. The pipe is formed by vacuum. Suitable for PP,PE,EVA,PA etc material compromise joint corrugated pipe.The pipe is widely used in air-conditioner,washing machine,medical ventilator,hookah,car,kitchen and toilet area etc.
Inquire now
Add to cart
Vacuum forming single wall corrugated pipe with joint extrusion line

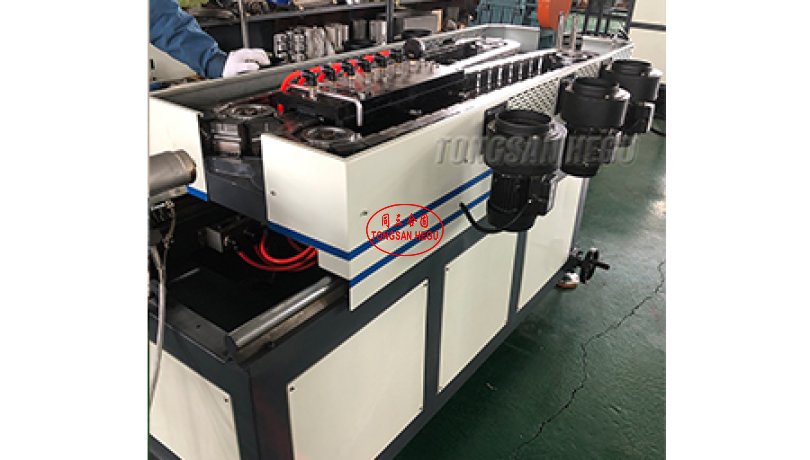

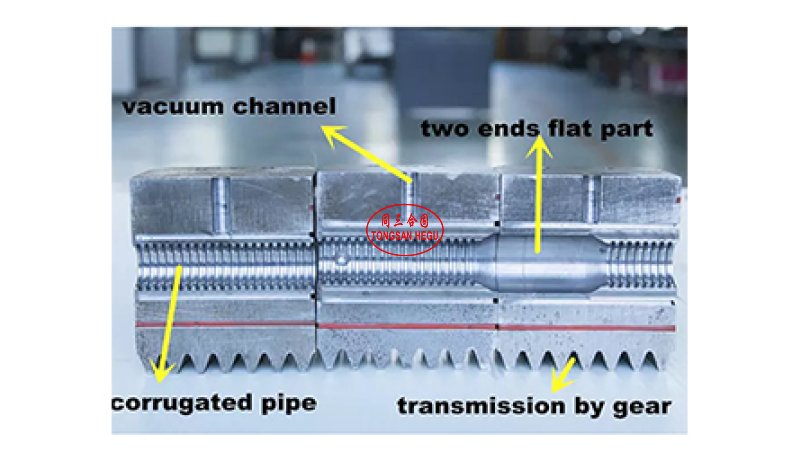

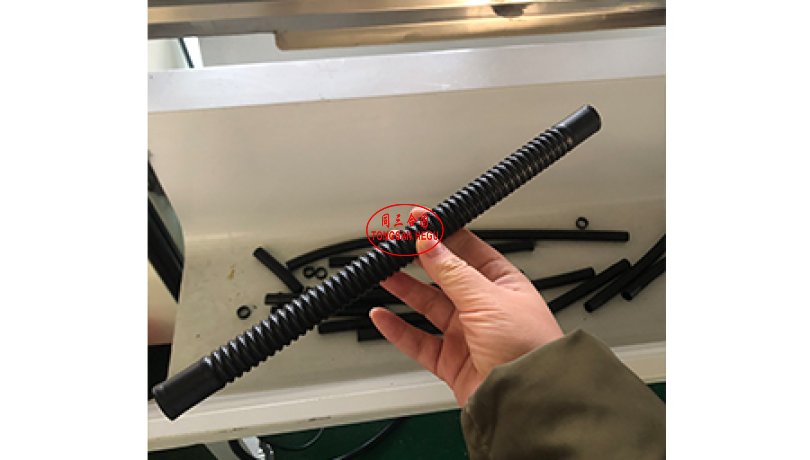

The line can produce special design single wall corrugated pipe with vacuum forming mode. The forming machine equips with vacuum system. Specially designed for shisha hose/magic pipe/joint corrugated pipe.
| Pipe diameter | Production speed | Extruder Model | Motor power |
| ID9-OD32mm | 5-12m/min | SJ50/30 | 15kw |
| ID12-OD50mm | 3-10m/min | SJ65/30 | 30kw |
| ID32-OD110mm | 3-8m/min | SJ75/30 | 37kw |
Normal speed single wall corrugated pipe extrusion line
The line speed can up to 12m/min. The forming machine equips with air cooling system for cooling the molds and pipe.
| Pipe diameter | Production speed | Extruder Model | Motor power |
| ID5.5-OD16mm | 6-8m/min | SJ45/28 | 7.5kw |
| ID9-OD32mm | 5-12m/min | SJ50/30 | 15kw |
| ID12-OD50mm | 3-10m/min | SJ65/30 | 30kw |
| ID16-OD63mm | 3-10/min | SJ65/30 | 30kw |
| ID32-OD110mm | 3-8m/min | SJ75/30 | 37kw |
High speed single wall corrugated pipe extrusion line
The line speed can up to 30m/min. High speed forming machine equips with automatic lubrication system and closed forced water-cooling system to achieve high-speed production. The corrugated pipe molds includes single cavity molds and double cavity molds.
| Pipe diameter | Production speed | Extruder Model | Motor power |
| ID5-OD14mm | 10-20m/min | SJ45/28 | 7.5kw |
| ID12-OD50mm | 20-30m/min | SJ65/30 | 30kw |
