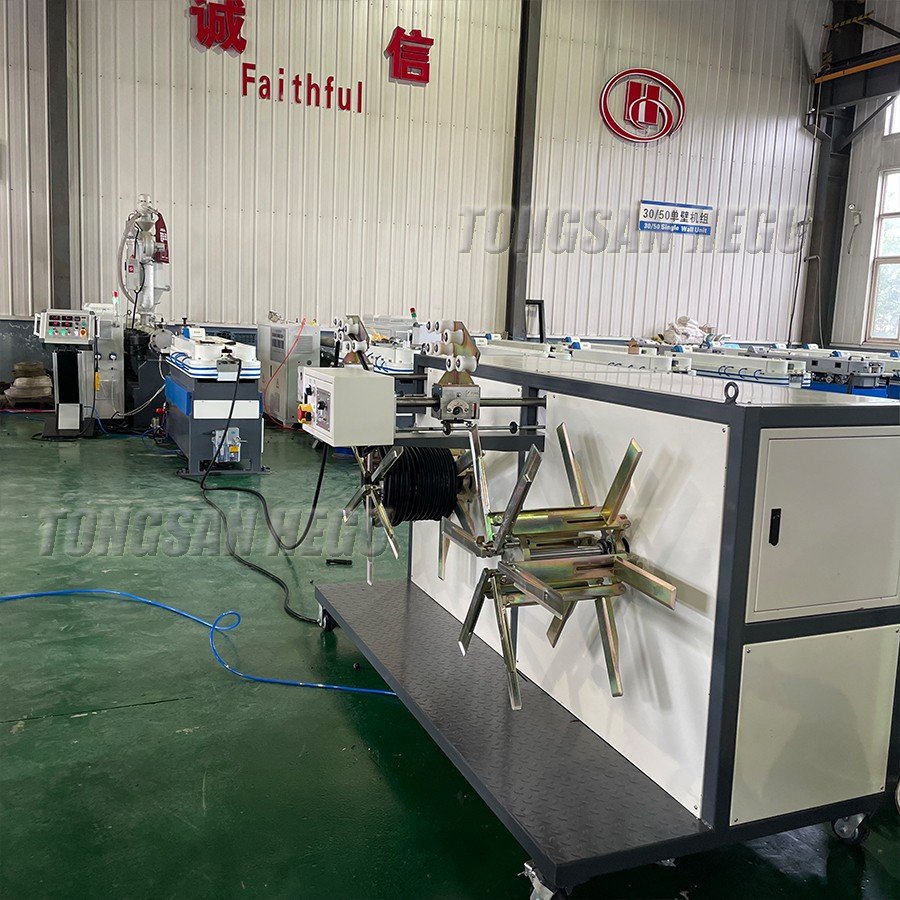

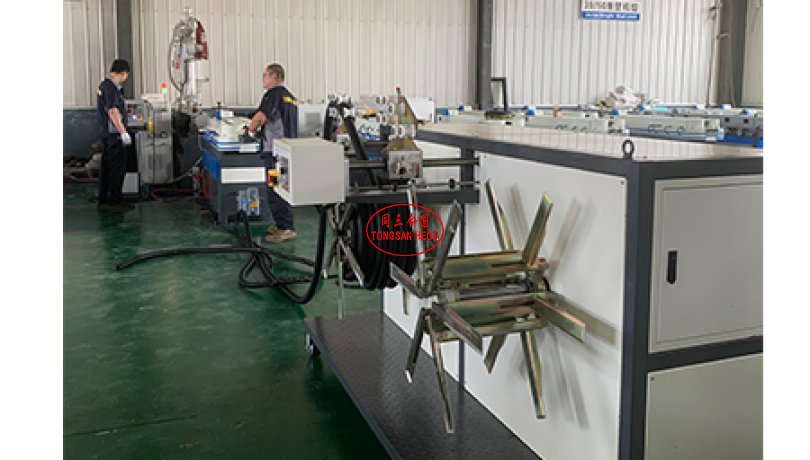

GSDBGZ series high speed single wall corrugated pipe extrusion line can produce PE, PP, EVA, PVC, PA corrugated pipes.
By technical upgrade, replaced the traditional chain type forming machine, the pipe surface and precision is improved significantly.
This high speed corrugated pipe production line adopts gear transmission, mould use 40Cr material, Nitriding process. Mould is running in the track, with automatic oil lubrication system and closed forced water cooling system, it can achieve high speed production.
By equipped with vacuum pump and vacuum type mould, it can produce different use corrugated pipe with joint (wash basin drain pipe, air conditioner pipe, hookah pipe etc)
In one mould, it can produce 2 size pipe, the two pipe outside diameter A+B should less than 45mm. In the production, by adjust the molding machine up and down to produce corrugated pipe of different diameters.
Inquire now
Add to cart
High speed single wall corrugated pipe machine for PVC PP PE PA flexible shrinkable pipe
1, material for the single wall corrugated pipe and corrugated tube:
This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes
2, application for the single wall corrugated pipe and corrugated tube:

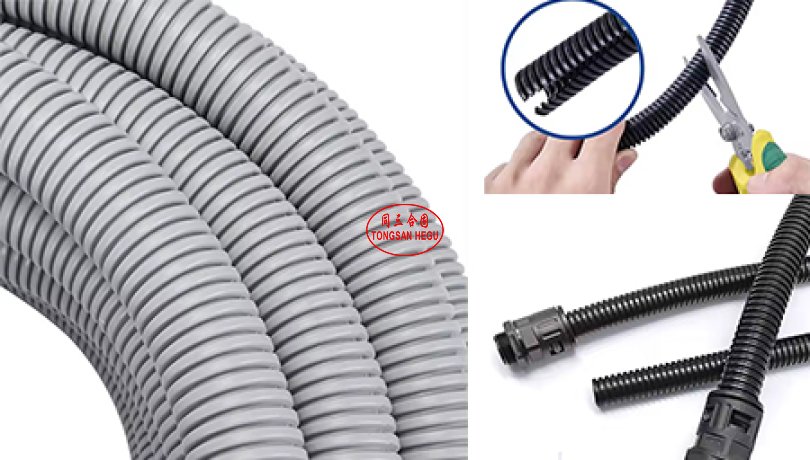

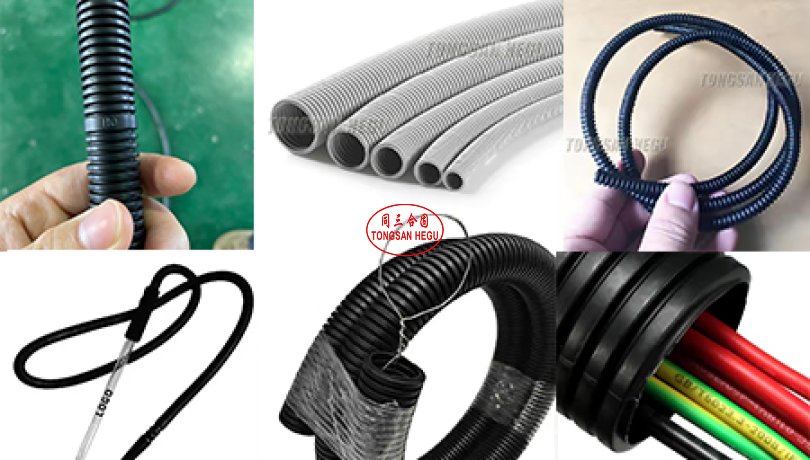

Plastic single-wall corrugated pipes have feathers of high temperature resistance,resistant to corrosion and abrasion,high intensity,good flexibility,etc.They are widely used in fields of auto wire,electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lanterns wire,tubes of air conditioner and washing machine,etc.
3, advatanges of the single-wall corrugated pipe machine (the machine for corrugated tube):
SJDBGZ seies plastic single-wall corrugated pipe production line developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are especially used as wires of the up-market cars.This production line with good performance and reasonble price,it will be the best choice for your producing single-wall corrugated pipe.
SPECIFICATIONS FOR Plastic Perforated Spiral Corrugated Punching Pipe Extrusion Machine | |||||
Pipe diameter range | 4.5-9mm | 9-32mm | 16-50mm | 32-110mm | 50-160mm |
Extruder model | SJ-30 | SJ-50 | SJ-65 | SJ-75 | SJ90 |
R/D | 30:1 | 30:1 | 30:1 | 30:1 | 30:1 |
Extrusion capacity | 10kg/h | 30kg/h | 50kg/h | 60kg/h | 100kg/h |
Main motor power | 4kw | 15kw | 30kw | 37kw | 55kw |
Formation machine power | 1.1kw | 1.5kw | 2.2kw | 4kw | 4kw |
Mould quantity | 42 | 50 | 50 | 72 | 72 |
Cooling method | Wind & Water cooling | ||||
Production speed | 6-10m/min | 8-30m/min | 8-30m/min | 6-16m/min | 4-16m/min |
Coiling methjod | Automatically &manually | ||||
Detailed Images
Machine list | Quantity |
single screw extruder with auto feeder and drying hopper | 1 set |
Die head | 1 set |
Mold: 72 pais of mold blocks | according to customer's requirements |
Steel wire unwiding and inserting device | 1 set |
Forming machine: with water cooling | 1 set |
Coiling machine, double station | 1 set |
Electricity control system | 1 set |
Spare parts | 1 set |

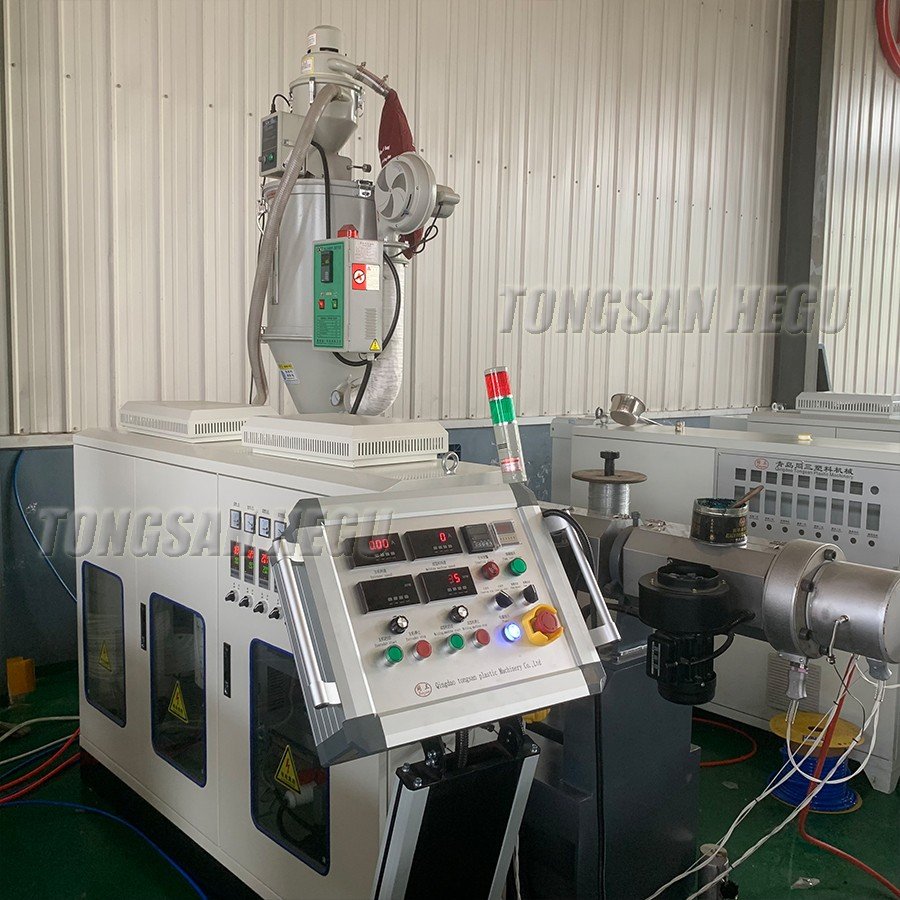

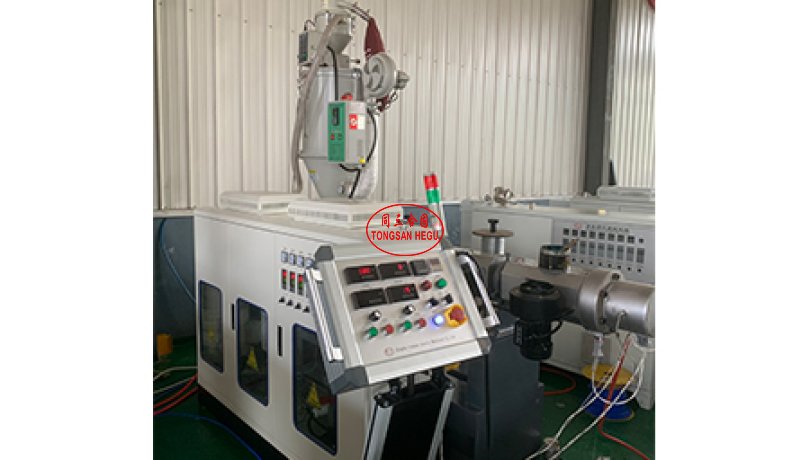

1, Single screw extruder for plastic corrugated pipe machine:
SJ45 for 5 mm -14mm and SJ65 for 10 MM ---50MM
1) with auto feeding device
2) with drying hopper
3) electricity control system: ABB inverter, Siemens Motor, Omron temperature control
4) with aluminum heater and blowing cooling

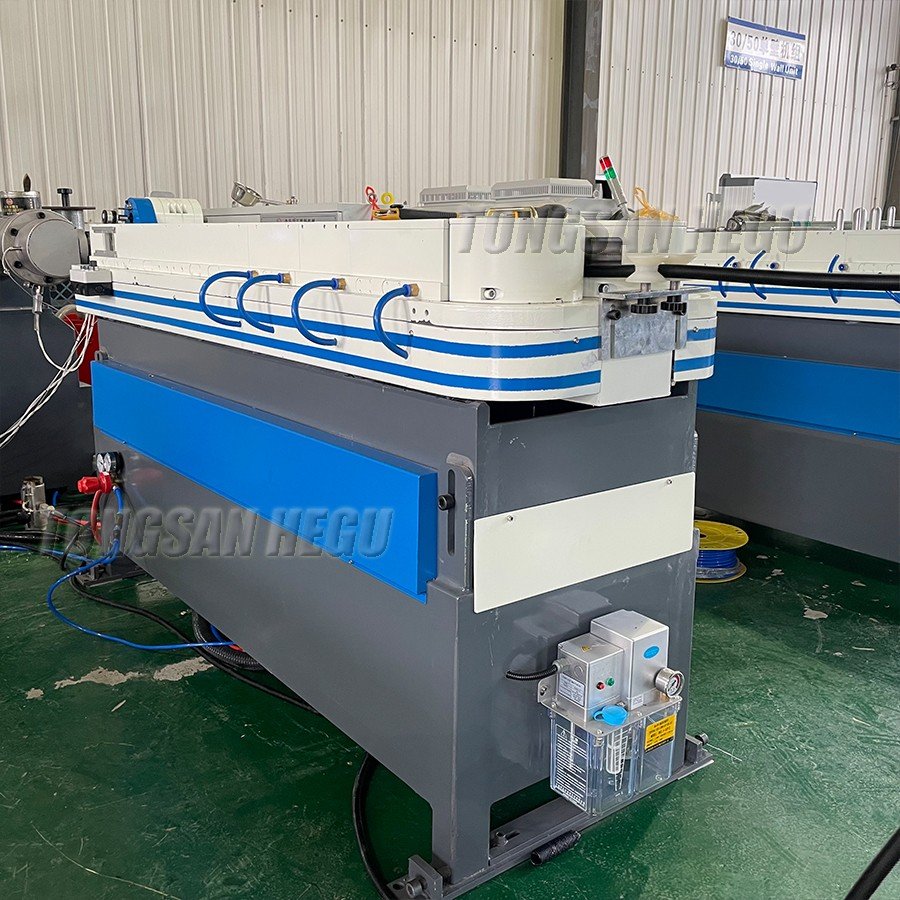

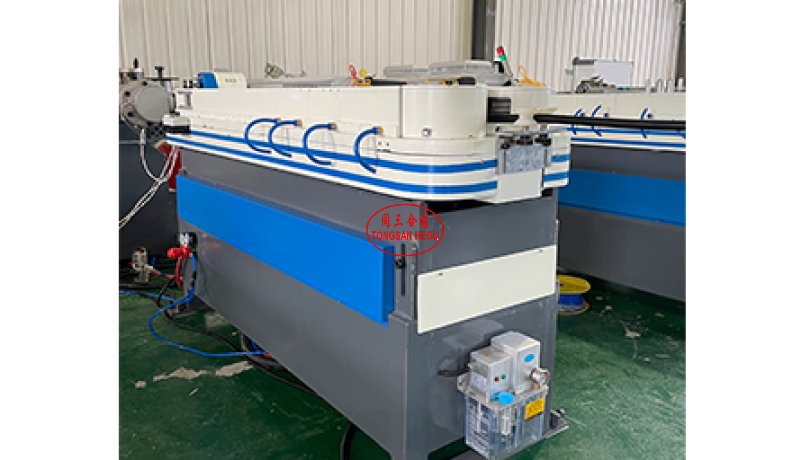

2, high speed forming machine for corrrugated pipe making machine
20-30meter/minute speed.
with water cooling
3,high speed mold for corrugated pipe making machine
material: 40 cr with nitrating
mold quantity: 72 pairs
cavity: double size on same mold
speed: 20-30meter/minute

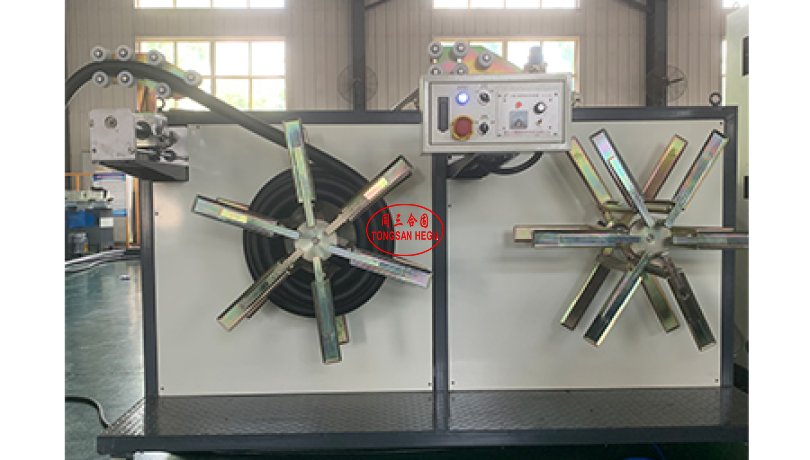

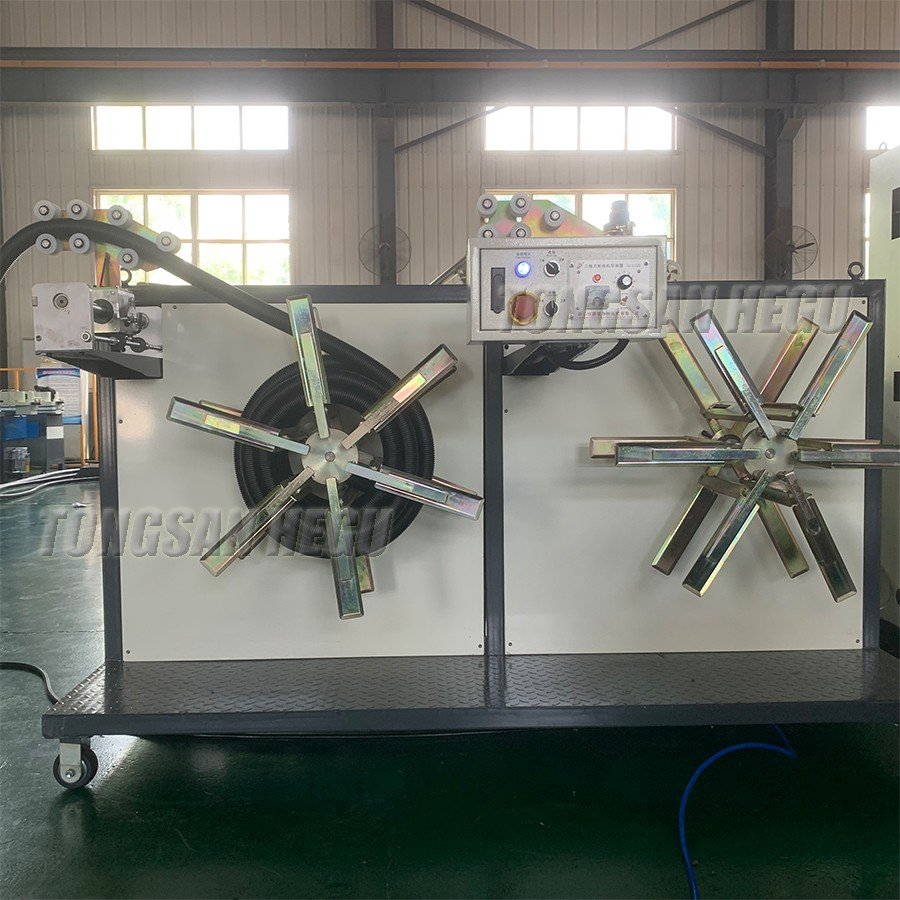

4,Auto winding machine
1, winding station: double station
2, winding method: automatic windinhg
3, meter counting: automatic counting
4, winding meters: customized
5,Corrugated pipe mold making:
we have our own workshop and CNC machines to make corrugated pipe molds by ourself, we also has design team for design the corrugated pipe molds according to customer's requirements.
such as magic pipe mold, shisha pipe mold, double size mold....
