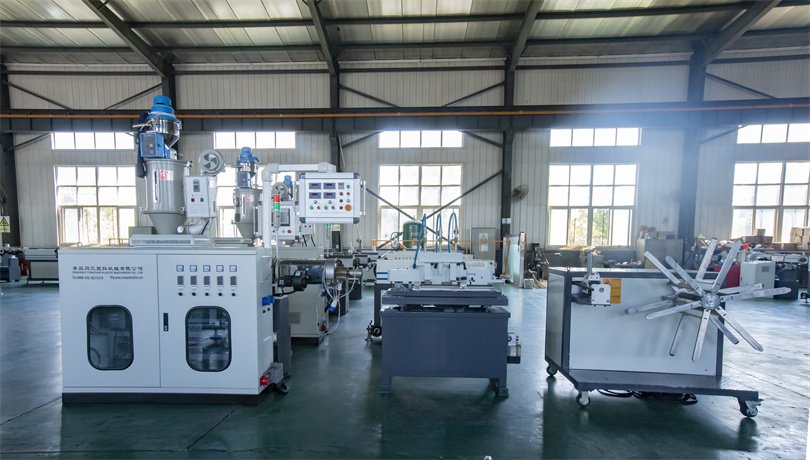

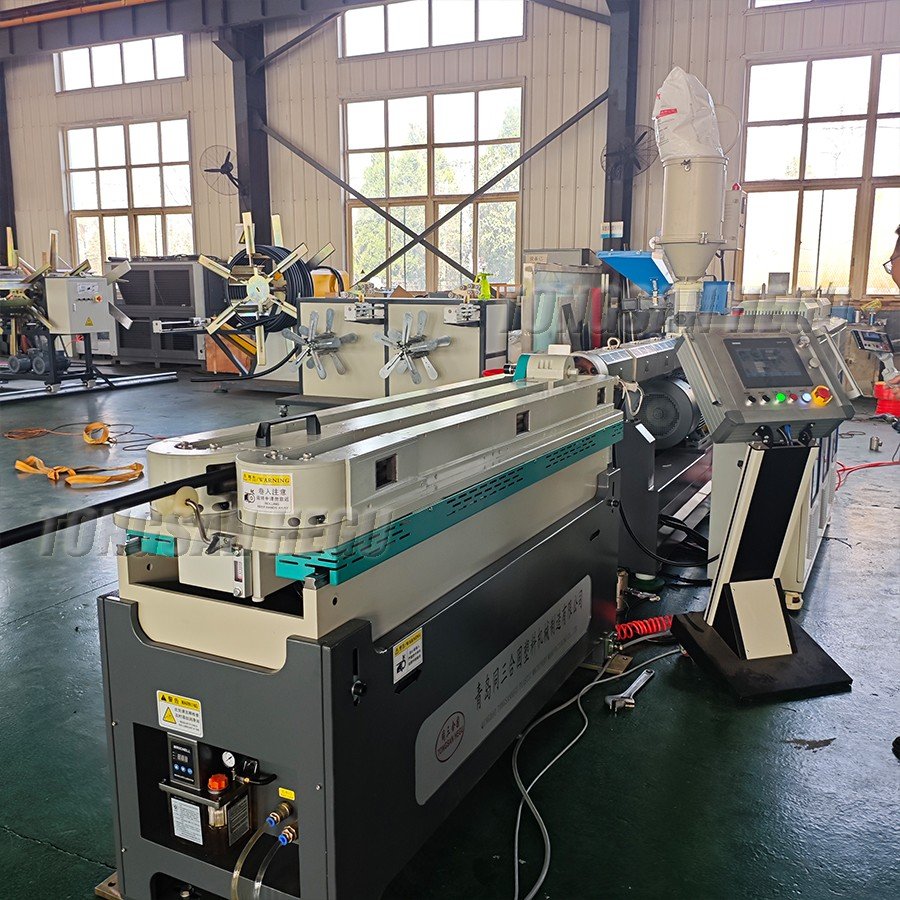

GSDBGZ series high speed single wall corrugated pipe extrusion line can produce PE, PP, EVA, PVC, PA corrugated pipes.
By technical upgrade, replaced the traditional chain type forming machine, the pipe surface and precision is improved significantly.
This high speed corrugated pipe production line adopts gear transmission, mould use 40Cr material, Nitriding process. Mould is running in the track, with automatic oil lubrication system and closed forced water cooling system, it can achieve high speed production.
By equipped with vacuum pump and vacuum type mould, it can produce different use corrugated pipe with joint (wash basin drain pipe, air conditioner pipe, hookah pipe etc)
In one mould, it can produce 2 size pipe, the two pipe outside diameter A+B should less than 45mm. In the production, by adjust the molding machine up and down to produce corrugated pipe of different diameters.
Inquire now
Add to cart
Plastic shisha hose production line / PP PE PVC PA flat corrugated pipe machine
Main Description:
1,Used condition : | 380V/3phase/50HZ |
2,Suitable material : | PP, PE ,PA, PVC |
3,Pipe range : | φ9-50mm |
4, output capacity: | 60-80kg/h |
Production speed | 20-30m/min |
Extruder model | SJ65 |
Main motor power | 30 kw |
Machine size | 12m*1m*3m(length*width*height) |
Machine list | Quantity |

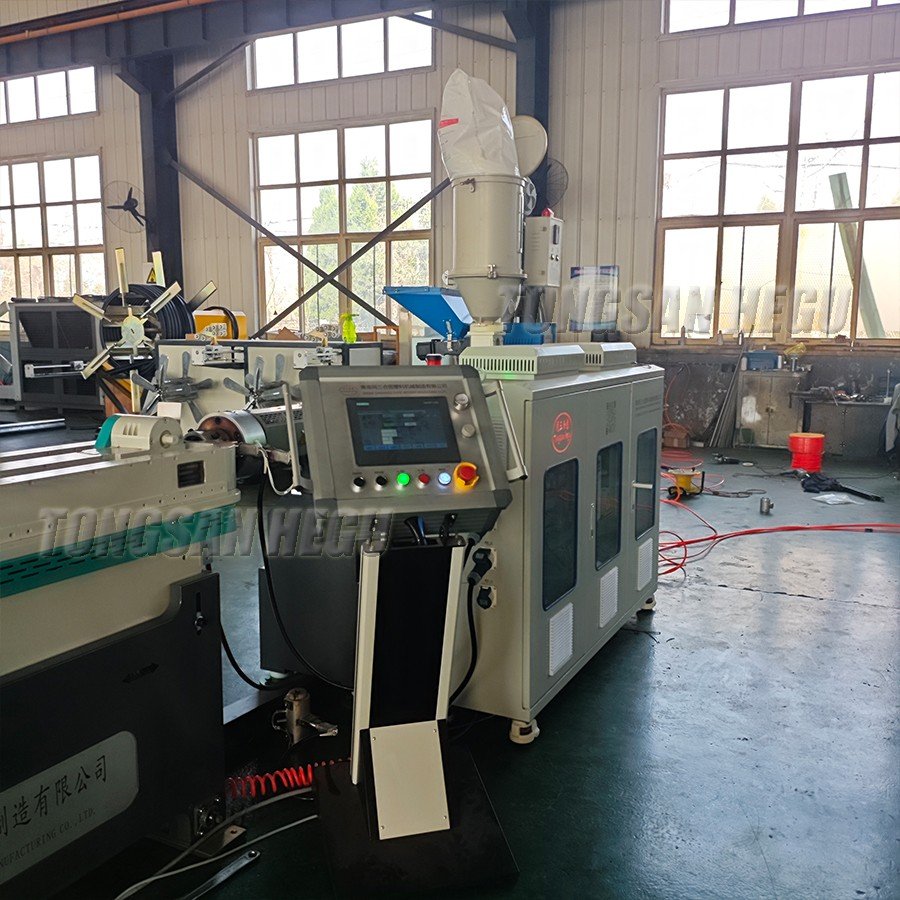

SJ65/30 single screw extruder with auto feeder and drying hopper | 1 set |
Die head | 1 set |
Mold: 72 pais of mold blocks | according to customer's requirements |
Steel wire unwiding and inserting device | 1 set |

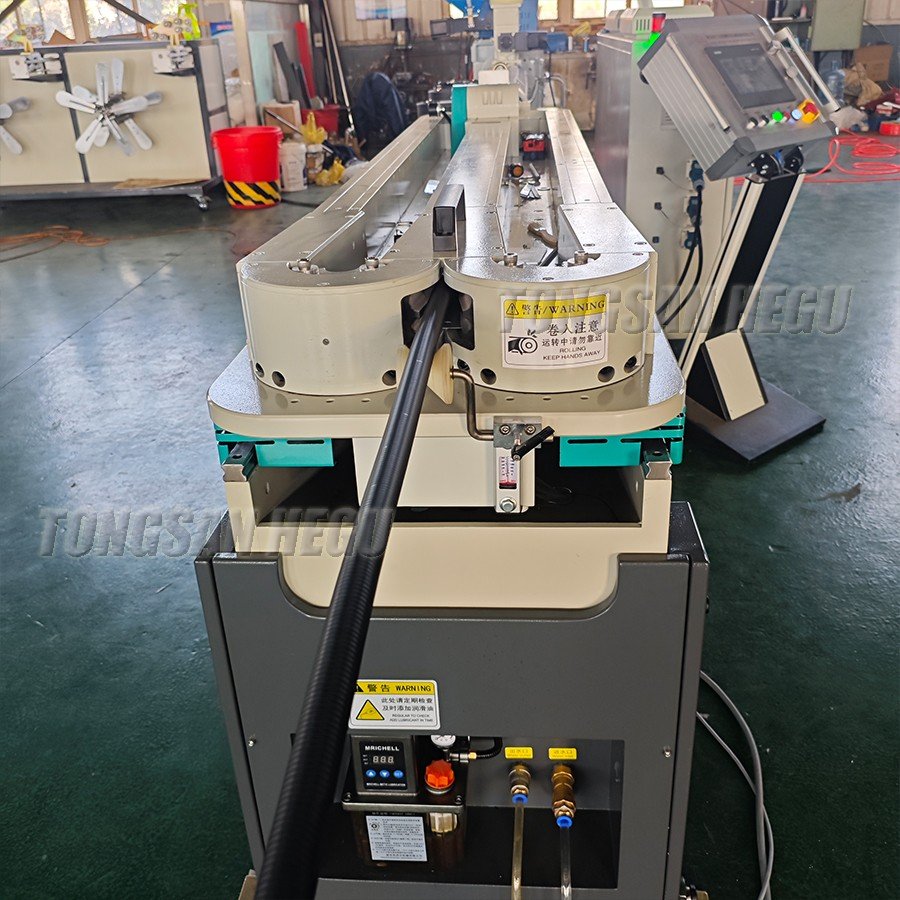

Forming machine: with water cooling | 1 set |

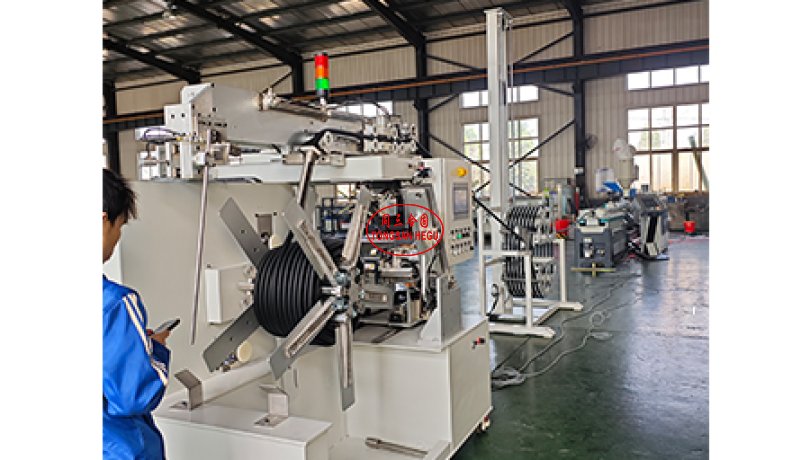

Coiling machine, double station | 1 set |
Electricity control system | 1 set |
Spare parts | 1 set |
Detailed description of the plastic single wall corrugated pipe machine
1, material for the single wall corrugated pipe and corrugated tube:
This production line can be used to produce corrugated pipes of PE,PP,PVC,EVA continuously,as well as PA corrugated pipes
2, application for the single wall corrugated pipe and corrugated tube:

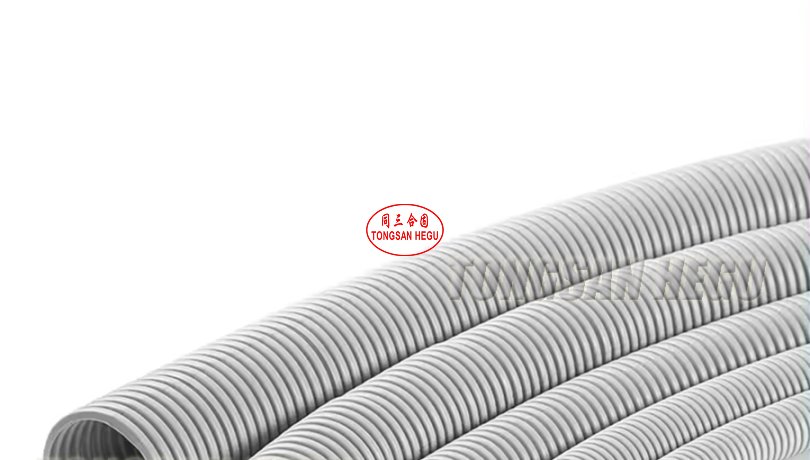

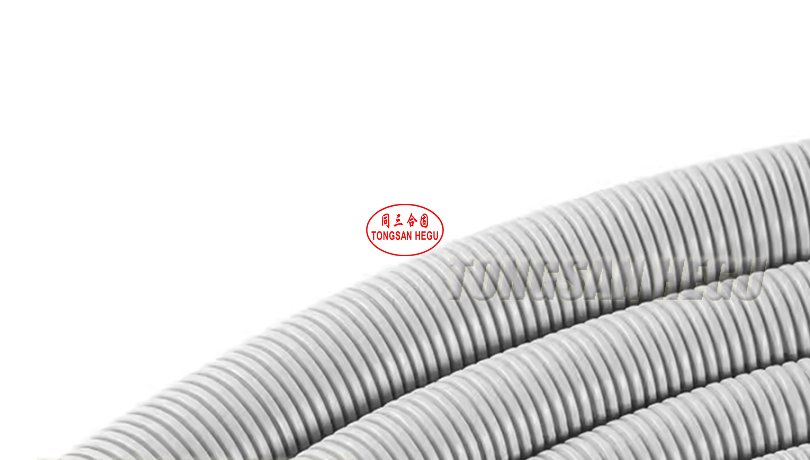

Plastic single-wall corrugated pipes have feathers of high temperature resistance,resistant to corrosion and abrasion,high intensity,good flexibility,etc.They are widely used in fields of auto wire,electric thread-passing pipes,circuit of machine tool,protective pipes of lamps and lanterns wire,tubes of air conditioner and washing machine,etc.
3, advatanges of the single-wall corrugated pipe machine (the machine for corrugated tube):
SJDBGZ seies plastic single-wall corrugated pipe production line developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products,which ensures high-speed molding,even corrugation,smooth inner and outer pipe wall.These corrugated pipes are especially used as wires of the up-market cars.
This production line with good performance and reasonble price,it will be the best choice for your producing single-wall corrugated pipe.
