1.OUR PRODUCTS:

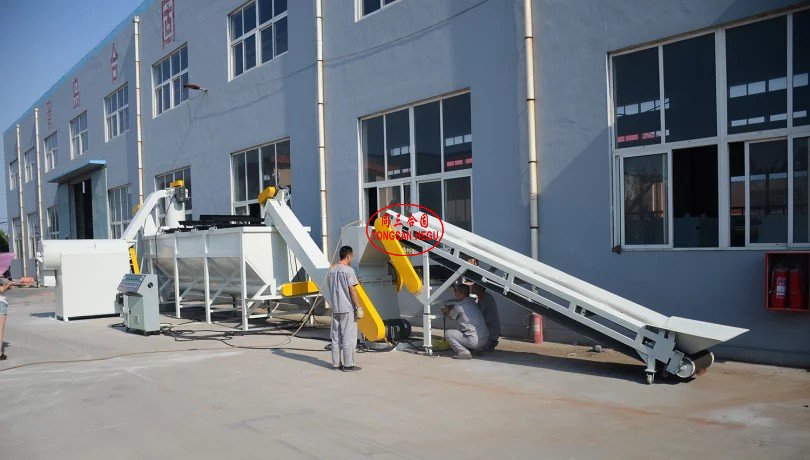

PVC PET PP PE film washing line/recycle plastic machine/machine to recycle plastics bottle
Application | Recycling the waste plastic, PP PE PET PVC the waste plastic film cleaning machine |
Capacity | 300/500/1000 kg/h |
rotating blade quantity | 8 |
fixed blade quantity | 4 |
turning diameter | 450mm |
feed inlet diameter | 600*600mm |
sifter hole diameter | 12mm |
miving blade speed | 400r/min |
center height | 1500mm |
motor power | 55kw |
heating power | 70kw |
material | PP PE PVC PET, waste plastic film |
screw quantity | 3-5 |
screw length | 3000mm |
screw diameter | 350mm |
size | 28000mm |
weight | 40000kg |
pot volume | 15000L |
HGMS series plastic cleaning machine is designed to clean recycled plastic woven sack and plastic farm film, the machine is widely used for PET,PP,PE plastic cleaning and plastic bottle cleaning. Developing on the basis of advanced technology, the machine has advantages of stable performance, high output, energy efficiency, small floor area and good appearance. We can produce the machine according to client requirement.
Each parts of machinery:
1, | Belt conveyer |
2, | Crusher (with water cleaning) |
3, | Screw conveyer |

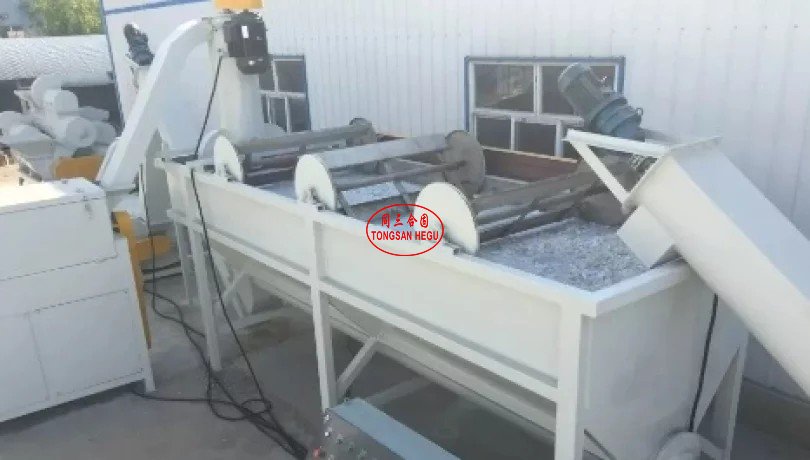

4, | Cleaning device |
5, | Material conveyer |
6, | Bottom material laundry |
7, | Screw conveyer |
8, | Surface material laundry |
