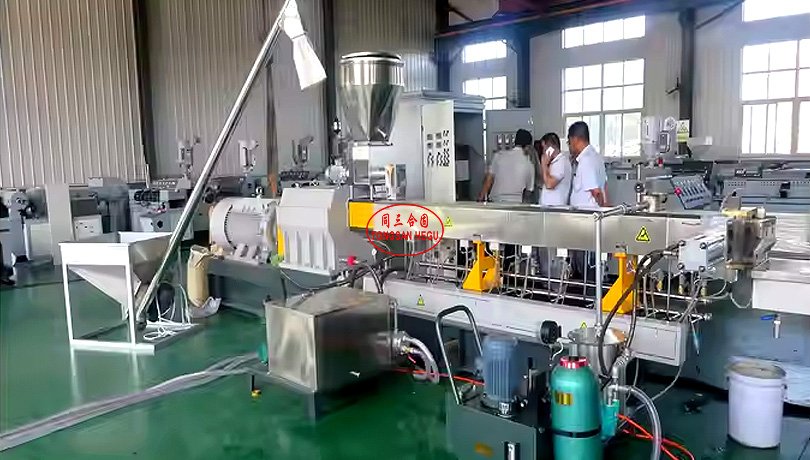

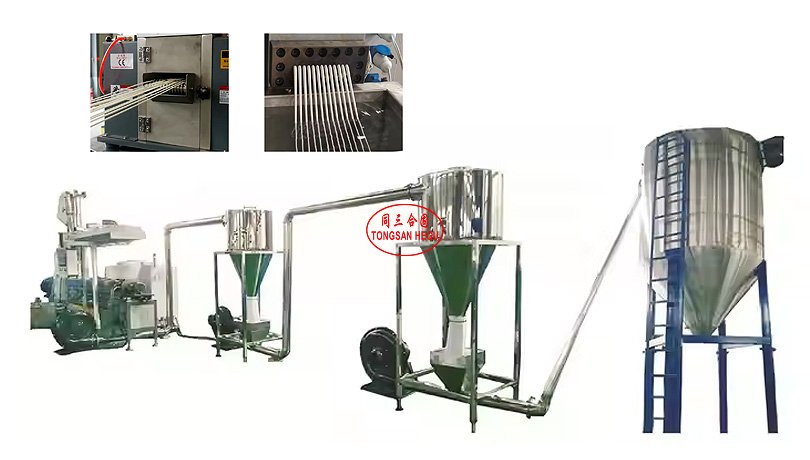

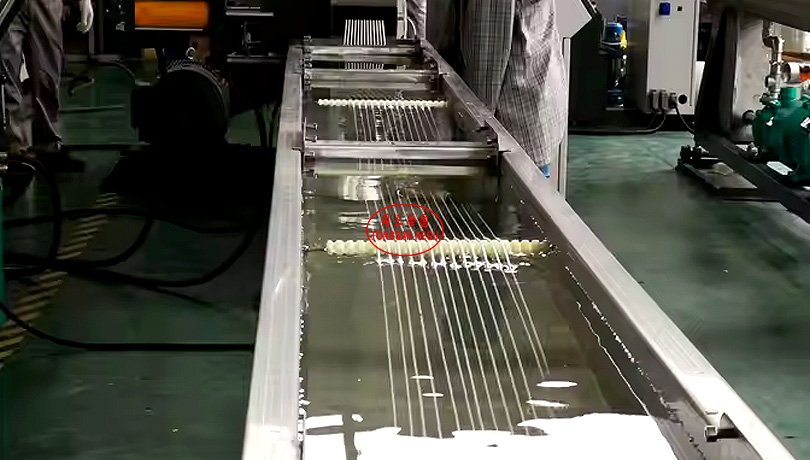

SHMS series granulating machine is used for making WPC pellets. The WPC pellets produced by WPC granulating machine can used for making WPC product using WPC machine.The granulating machine consists of parallel double-screw extruder,water cooling system, a granulator and air conveyor cooling system.The feeder and hopper are equipped with mixer to prevent the material blocked up.If customer do not have strict requirements about the appearance of pellets, the granulator can be removed.The pellets extrude by extruder directly, then go for crusher. Can improve the production capacity.
Inquire now
Add to cart
Turn waste PP PE Plastic and wood powder sawdust into WPC granules for WPC decking profiles
This production line is suitable for producing PP/PE WPC granule. The WPC wood plastic granulating machine adopt high quality parallel double extruder, it can help the plastic be compeletly mixed with wood and chemical additives. It has the advantage of high output and good plasticization. After the raw material be produced to granules, it will be used to produce WPC profiles.
Model/Item | SHMS-65 | SHMS-75 | SHMS-90 |
L/D Ratio | 40:1 | 40:1 | 40:1 |
Extruder capacity | 200kg/h-220kg/h | 300kg/h-350kg/h | 500KG/H-600KG/H |
Mean motor power | 75kW | 90kW | 132kW |
Rotating speed | 500rmp | 500rmp | 500rmp |
Material | PP/PE+Wood powder+chemical additives | ||
Max. wood percentage | ≤80% | ||
Over view of PP/PE WPC wood plastic granulating machine
We have Several different output of the PP/PE WPC wood plastic granulating machine in our factory. You can get cash commodity from our factory. Custmization also available here. We can also work in a new configuration as per your requirement.
